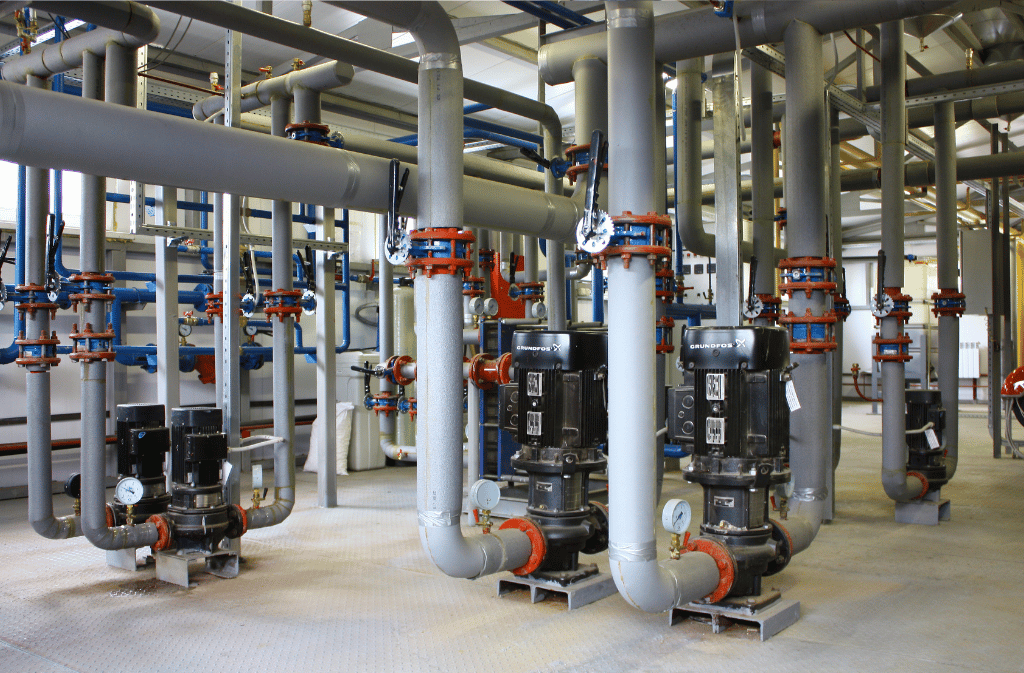

Glycol water treatment plays an important role in protecting closed loop systems that operate in HVAC, process cooling, and other industrial applications. Glycol is commonly added to system fluid to provide freeze protection, support temperature control, and help equipment continue operating when temperatures drop below the freezing point of water.
However, adding glycol alone does not ensure long-term system protection. Proper treatment also requires attention to glycol concentration, corrosion inhibitors, fluid condition, and overall water chemistry. Managing these factors helps protect metal components, maintain reliable heat transfer, and support consistent system performance throughout the life of the system.
Key Takeaways
- Glycol provides freeze protection, but effective closed loop treatment also requires corrosion control and water chemistry management.
- The correct glycol concentration balances low-temperature protection with heat transfer and system efficiency.
- Glycol condition can change over time due to heat, oxygen, contamination, and inhibitor depletion.
- Routine testing should evaluate more than concentration alone, including pH, inhibitor condition, and corrosion indicators.
- Properly maintained glycol systems can support reliable performance, equipment protection, and long-term operating efficiency.
What Is Glycol Water Treatment?
Glycol water treatment is the process of managing the chemistry of a water glycol mixture used in a closed loop system. While glycol helps prevent freezing and supports heat transfer, effective treatment also addresses corrosion, water quality, inhibitor performance, and changing system conditions. This is especially important in closed loop water systems, where the same fluid may circulate for long periods and remain in continuous contact with metal components.
A complete treatment approach typically considers:
- Glycol concentration and the required freeze protection
- Corrosion inhibitors needed to help prevent corrosion
- Water quality and compatibility with the glycol formulation
- pH, inhibitor levels, and overall fluid condition
- Signs of contamination, corrosion products, or glycol degradation
For this reason, glycol concentration alone does not provide a complete picture of system condition or protection.
Ethylene Glycol vs. Propylene Glycol
The two most common glycol types used in closed loop applications are ethylene glycol and propylene glycol. Both can provide freeze protection in HVAC systems, chilled systems, and industrial settings, but the right glycol depends on the application, operating temperature, system design, and the specific fluid formulation.
| Consideration | Ethylene Glycol | Propylene Glycol |
|---|---|---|
| Freeze protection | Effective at low temperatures | Effective at low temperatures |
| Toxicity consideration | Higher acute toxicity | Lower acute toxicity |
| Typical use | HVAC, process, and industrial cooling systems | HVAC, process, and applications where lower toxicity is preferred |
| Heat transfer characteristics | Generally favorable thermal performance | Effective, but performance varies with concentration and formulation |
| Selection factors | Temperature, metallurgy, system design, and fluid requirements | Temperature, metallurgy, system design, and fluid requirements |
Neither glycol type should be selected based on freeze protection alone. The complete formulation, including corrosion inhibitors and other additives, should match the needs of the closed loop system and the conditions in which the fluid will operate.
Glycol Concentration, Freeze Protection, and Heat Transfer
The effectiveness of a glycol mixture depends heavily on concentration. Glycol concentrations should be selected based on the lowest expected operating temperature and whether the system requires freeze protection or burst protection. Too little glycol may leave the fluid vulnerable when temperatures drop, while too much glycol can introduce unnecessary performance penalties.
Choosing the Right Glycol Concentration
The goal is to maintain the right balance between low-temperature protection and system performance. Proper glycol levels help ensure freeze protection while allowing the fluid to circulate and transfer heat effectively throughout heat exchangers, piping, and other system components.
Why Too Much Glycol Can Affect Performance
Increasing glycol concentration beyond what the application requires can raise fluid viscosity and change thermal properties. These changes may reduce heat transfer efficiency, increase pumping requirements, and affect overall system efficiency. Maintaining the correct concentration supports efficient heat transfer, reliable temperature control, and more consistent long-term system performance.
Why Glycol Chemistry Can Deteriorate
Glycol systems are not chemically static. Over time, heat, oxygen exposure, contamination, and operating conditions can contribute to glycol breakdown and changes in fluid chemistry. As glycol degrades, acidic byproducts may form, inhibitor levels can become less effective, and the risk of corrosion may increase.
Common factors that can affect glycol condition include:
- Elevated or prolonged operating temperatures
- Oxygen entering the system through leaks, makeup water, or maintenance activity
- Contamination from untreated water, process materials, or incompatible chemicals
- Depletion or imbalance of corrosion inhibitors
- Very low glycol concentrations that may create conditions more favorable to bacterial growth or microbial growth
- Extended service under extreme conditions without adequate monitoring
Degraded glycol does not automatically mean the entire fluid must be replaced, but it does signal the need for closer evaluation. Testing the fluid condition, inhibitor package, and corrosion indicators can help determine whether corrective treatment is possible or whether more extensive system maintenance is required.
Monitoring and Maintaining a Glycol System
A properly maintained glycol system should be evaluated on more than glycol levels alone. Routine testing helps identify changes in fluid condition, corrosion protection, and overall system performance before they develop into larger operating problems.
Important monitoring points include:
- Glycol concentration and freezing point
- pH and overall fluid condition
- Corrosion inhibitor condition and inhibitor levels
- Appearance, clarity, and signs of contamination
- Conductivity, where appropriate for the treatment program
- Dissolved metals or other indicators of corrosion
- Makeup-water additions, leaks, and recent system maintenance
- Changes in water temperature or operating conditions
Tracking these factors over time gives water treatment professionals a clearer picture of system condition. Consistent monitoring can help support equipment life, long-term efficiency, and reliable operation throughout changing seasonal and process demands.
ETI Support for Glycol and Closed Loop Water Treatment
Effective glycol water treatment often requires more than selecting a fluid and checking concentration. Water treatment professionals may also need application-specific chemistry, testing support, and technical guidance when closed loop conditions change or difficult problems develop.
Eastern Technologies, Inc. supports independent water treatment professionals and OEMs with:
- Closed loop water treatment products for chilled, tempered, hot, brine, and specialty systems
- Custom formulations for unique operating conditions and water chemistry
- Corrosion inhibitor and specialty treatment technologies
- Laboratory analysis and troubleshooting support
- Technical guidance for glycol program management
ETI works behind its partners rather than competing for the end-user relationship. If you need help evaluating glycol chemistry, selecting treatment, or troubleshooting a challenging closed loop application, contact ETI for the products and technical backing needed to support your customer with confidence.
Frequently Asked Questions (FAQs)
How much glycol should be used in a closed loop system?
The correct glycol concentration depends on the required freeze protection, expected low temperatures, fluid formulation, and the system’s operating conditions. Too much glycol can increase viscosity and affect heat transfer efficiency, so the goal is to maintain the right balance rather than simply maximizing concentration.
Does glycol prevent corrosion in closed loop systems?
Glycol alone should not be treated as a complete corrosion protection program for metal components in closed loop water systems. Proper corrosion inhibitors, suitable inhibitor levels, compatible water chemistry, and routine monitoring are needed to help prevent corrosion and maintain system performance.
What happens when glycol breaks down?
Degraded glycol can form acidic byproducts and alter fluid chemistry, especially after prolonged exposure to heat, oxygen, contamination, or extreme conditions. Glycol breakdown can place greater demand on corrosion inhibitors and may require testing, corrective treatment, or fluid replacement depending on system condition.
Can too much glycol reduce system efficiency?
Yes, excessive glycol concentrations can increase fluid viscosity and change thermal properties, making efficiently transferring heat more difficult. Maintaining the appropriate glycol mixture can support energy efficiency, reliable temperature control, and consistent heat transfer without adding unnecessary pumping demands or energy consumption.
How often should glycol systems be tested?
Glycol systems should be tested according to operating conditions, system history, manufacturer guidance, and the water treatment program rather than a single universal schedule. Regular checks of glycol levels, freezing point, inhibitor condition, pH, and corrosion indicators help keep the system properly maintained and support equipment life and long-term efficiency.
